Safety notice

Release Buckle VI
Your safety is our utmost priority. Even with the greatest diligence and foresight technical problems with materials can, unfortunately, not be completely ruled out.



Because it cannot be assured beyond doubt that the built quality of some few units conforms to the expected lifespan, we advice to replace all Releasebuckles generation six.

ISSUE DESCRIPTION

The Releasebuckle is connecting the harness to the spreader bar. Following a comprehensive quality test program, we have found that some of the buckles are deviating from our set standard and can be prone to breakage in extreme high load situations or/and extensive use. A broken buckle will result in the harness opening involuntarily posing a considerable risk of injury.

IS MY BUCKLE AFFECTED?

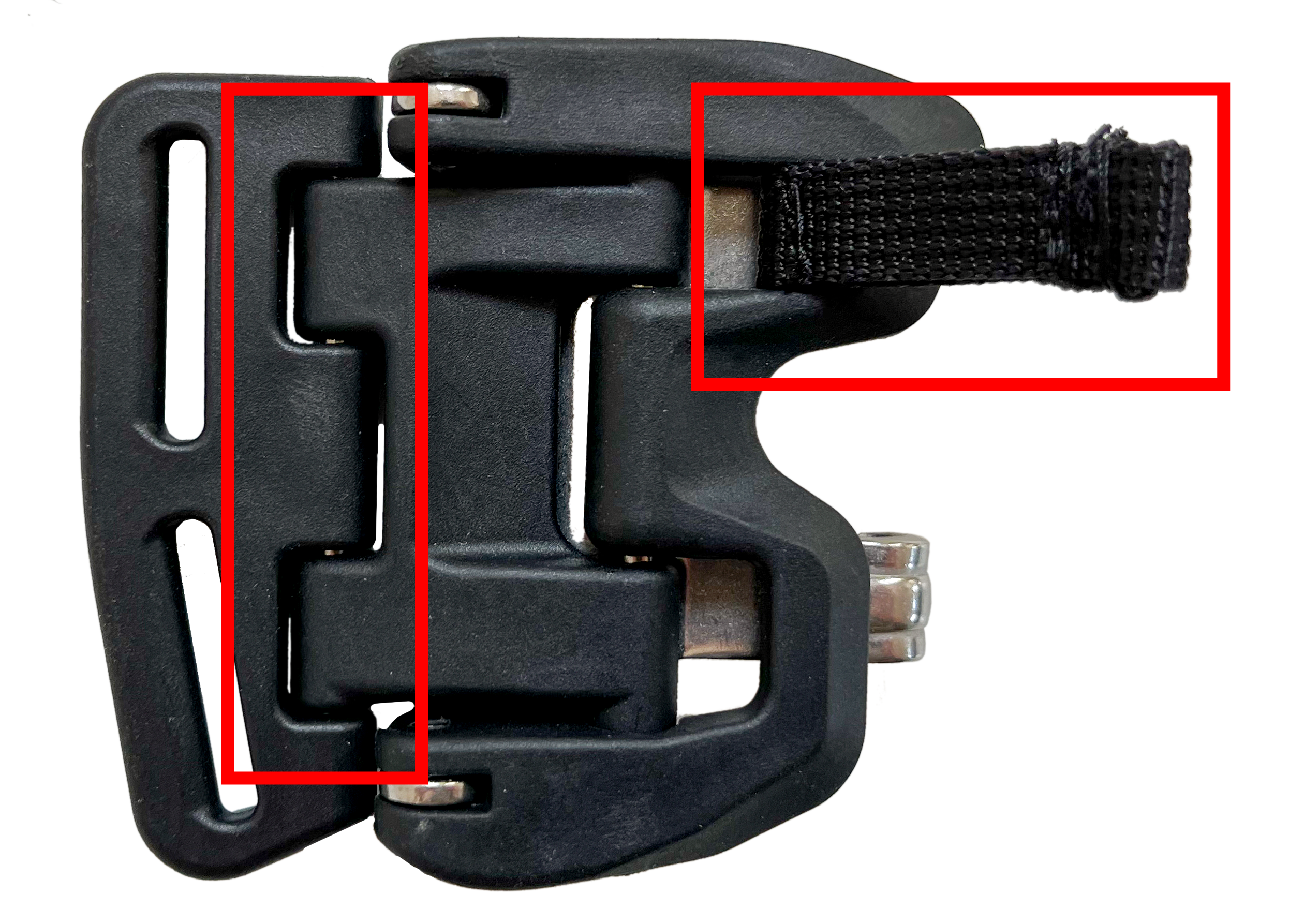

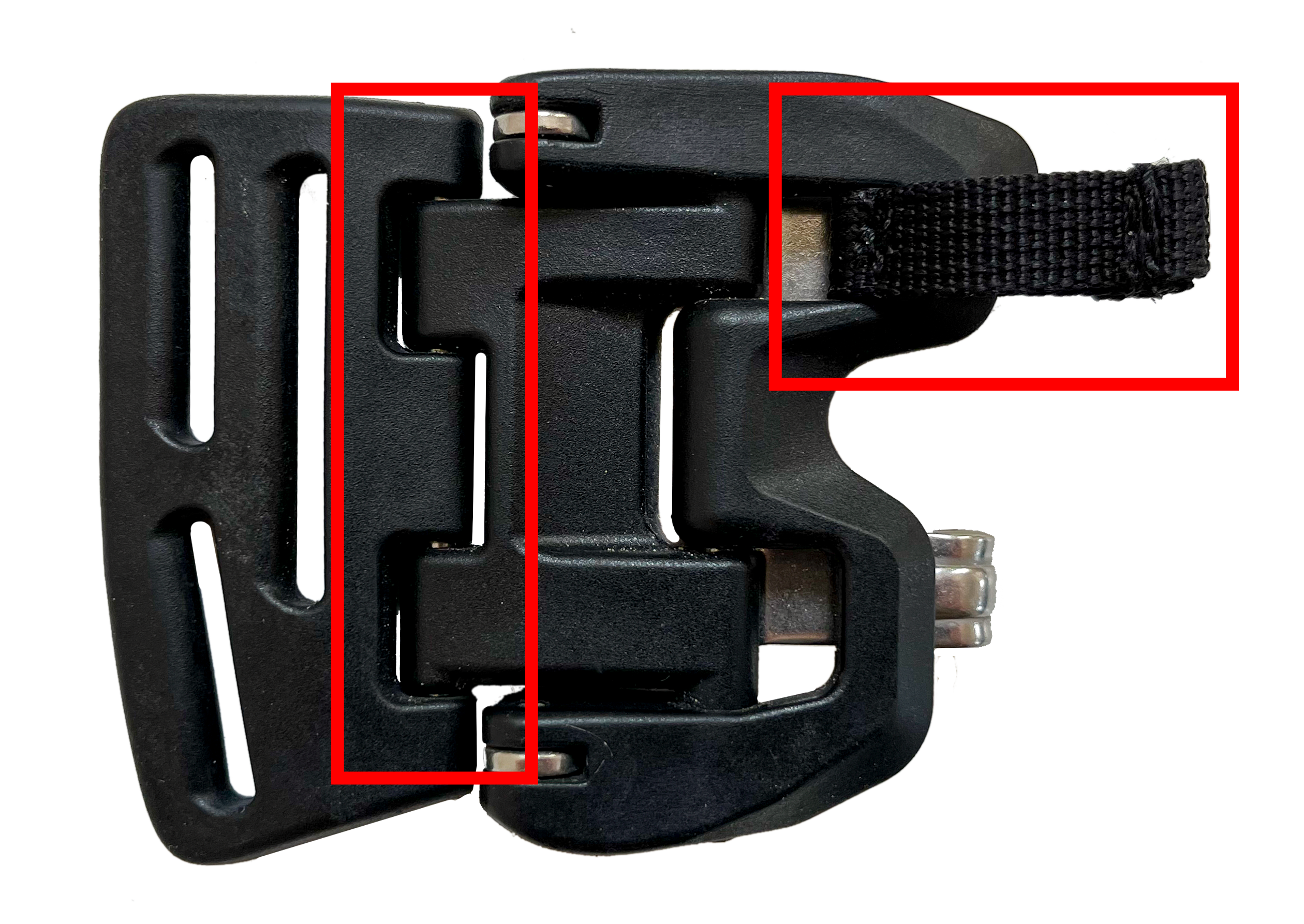

  • Affected are all Releasebuckles VI with two joints. Please see the explanatory illustrations below.

RB IV
RB IV
  • Furthermore, the Releasebuckles are identified by the webbing puller. Only the affected buckle features this textile part.

  • These Releasebuckles were exclusively mounted on 2020 and 2021 waist and seat harnesses.

  • Only the C-Bar 2.0 and C-Bar 3.0 Spreaderbar can have an affected buckle.

  • Only the following kite harnesses can have an affected buckle:

    Riot Curv 14 - 2020/21

    Riot CS 20 - 2020

    Riot 9 - 2021

    Apex 8 - 2021

    Apex Curv 13 - 2020/21

    Nova 6 - 2021

    Nova Curv 10 - 2020/21

    Sol Curv 11 - 2020/21

    Sol 7- 2021

    Radar - 2021

    Sonar - 2021

    B2 - 2021

HOW TO PROCEED

  1. Go to any ION Dealer of your choice. They will exchange the buckle and upgrade to the newest version free of charge. This is the easiest and fastest option.

  2. Can’t go to a shop? Contact us via the contact form provided below. We will come back to you as soon as possible so that we can send you the replacement buckle free of charge.

RB old and new

MOUNTING THE REPLACEMENT BUCKLE

Dismounting your old buckle and upgrading it with the new Releasebuckle is very easy.


Pull the straps through the tension/ladder buckles on the side.


You can now pull out the affected Release Buckle.

Mounting RBVIII_3.jpg

Put the straps through the new replacement buckle.

Mounting RBVIII_4.jpg

Thread both straps through the buckles from below, so the straps come out on the upper side. Depen-ding on the adjustement buckle version you might need to thread the webbings through two holes. 6.


If you are in doubt compare with the other side of your harness, to make sure that you connected the webbings correctly.

How to replace the Releasebuckle VI_PVC Buckle

default

How to replace the Releasebuckle VI_C30 Buckles

default
